Borewell Submersible Pumps
Innovations by Latteys
Submersible Water Pumps
We manufactured Submersible Pumpsets as per IS: 8034 Standard which can be used in the field of advanced technology. All parts are manufactured and fitted precisely using CNC machine that imparts excellent mechanical strength and reliability. The electrical design of Latteys Motors has been done with polyester Coated winding to improve efficiency and reduce electrical consumption.
- Motor filled with water gives better cooling to winding as well as bush.
- Self-aligned carbon Stainless steel thrust bearing which withstands high axial thrust load in water lubrication.
- Dynamically Balancing Rotating part to ensure minimum noise and vibration-free operation.
- Electrically designed to lower power consumption and operating cost.
- Pumps available with non-return valve to reduce the backpressure of water when they are switched-off.
- Impeller and Bowl are accurately machined by CNC machine to ensure high dimension accuracy.
- Superior designed cast Iron impellers & diffusers give higher hydraulic performance, greater efficiency and provide higher resistance against wear & tear through sand and other impurities.
- Stainless steel strainer prevents particles over a certain size from entering the pump.
- Sprinklar & Drip Irrigation
- Civil & Industries
- Fire fighting system
- Agriculture
- Gardening
- Hospitality
Addition Information
Motor Body
Stainless Steel
Stator
Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
Rotor
Coated with polyurethane paint for corrosion resistance and dynamically balanced for vibration free smooth operations.
Windings
PVC/ Polyester insulated.
Thrust Bearings
Special Self-alignning and water lubricated to with stand high axial thrust load.
Breather diaphragm
Adequately sized to accommodate expansion of water inside the motor and prevent loss cooling water.
Impeller
High quality abrasion resistant dynamically balanced.
Bowl
High Grade Cast Iron.
Shaft
Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
Casing
High graded Cast Iron.
Cable Sealing
Designed so that no Borewell water with sand can enter the motor.
-

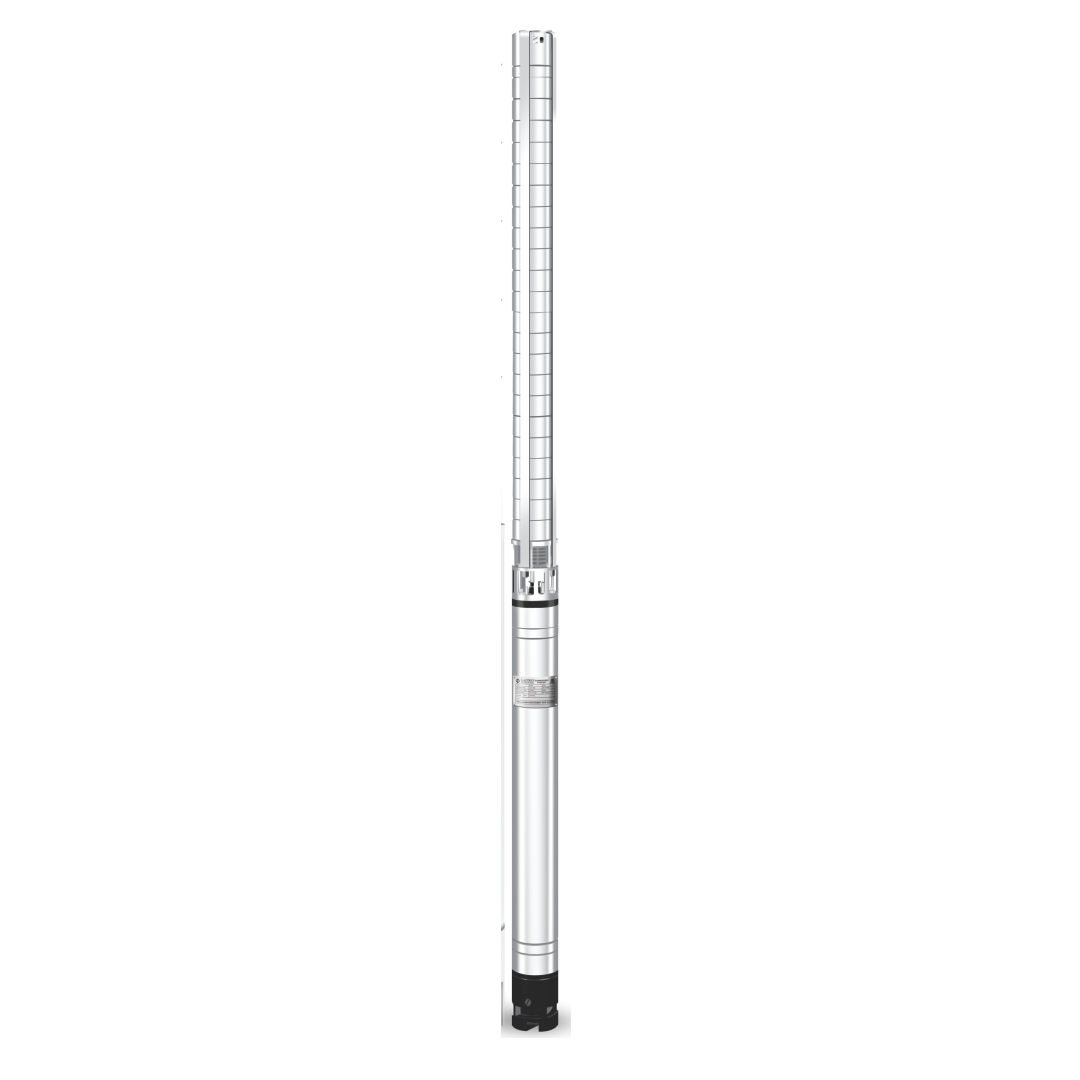

V4 Single Phase/Three Phase Waterfill Stainless Steel Submersible Pumpset RadialflowHP Range 0.50-10 Up To Stage 60 Phase Single Phase/Three Phase Suction - -

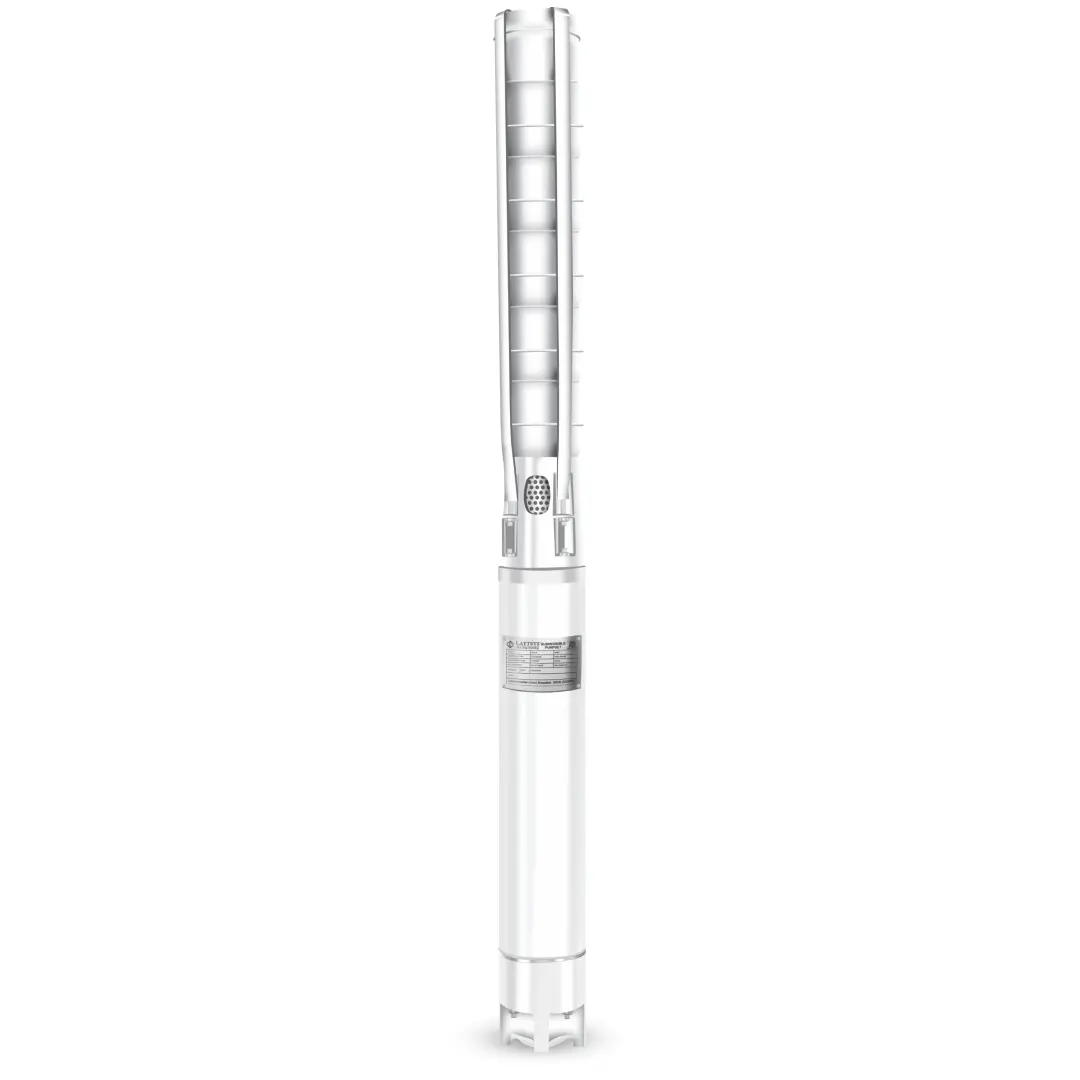

V6 Three Phase Waterfill Stainless Steel Submersible Pumpset MixedflowHP Range 3-30 Up To Stage 54 Phase Single Phase/Three Phase Suction - -

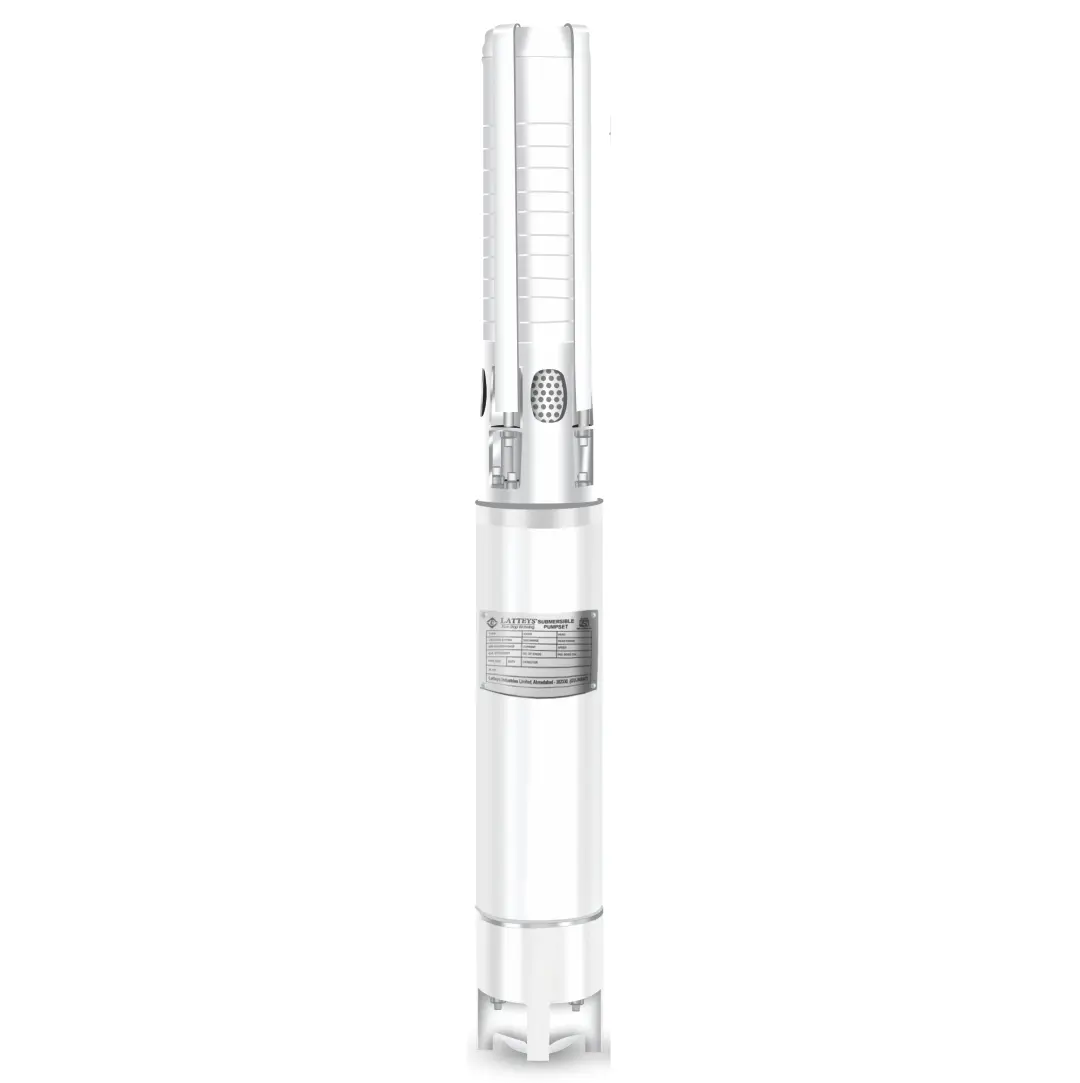

V8 Three Phase Waterfill Stainless Steel Submersible Pumpset MixedflowHP Range 5/3.75 Upto Stage 25 Phase Single Phase Suction - -

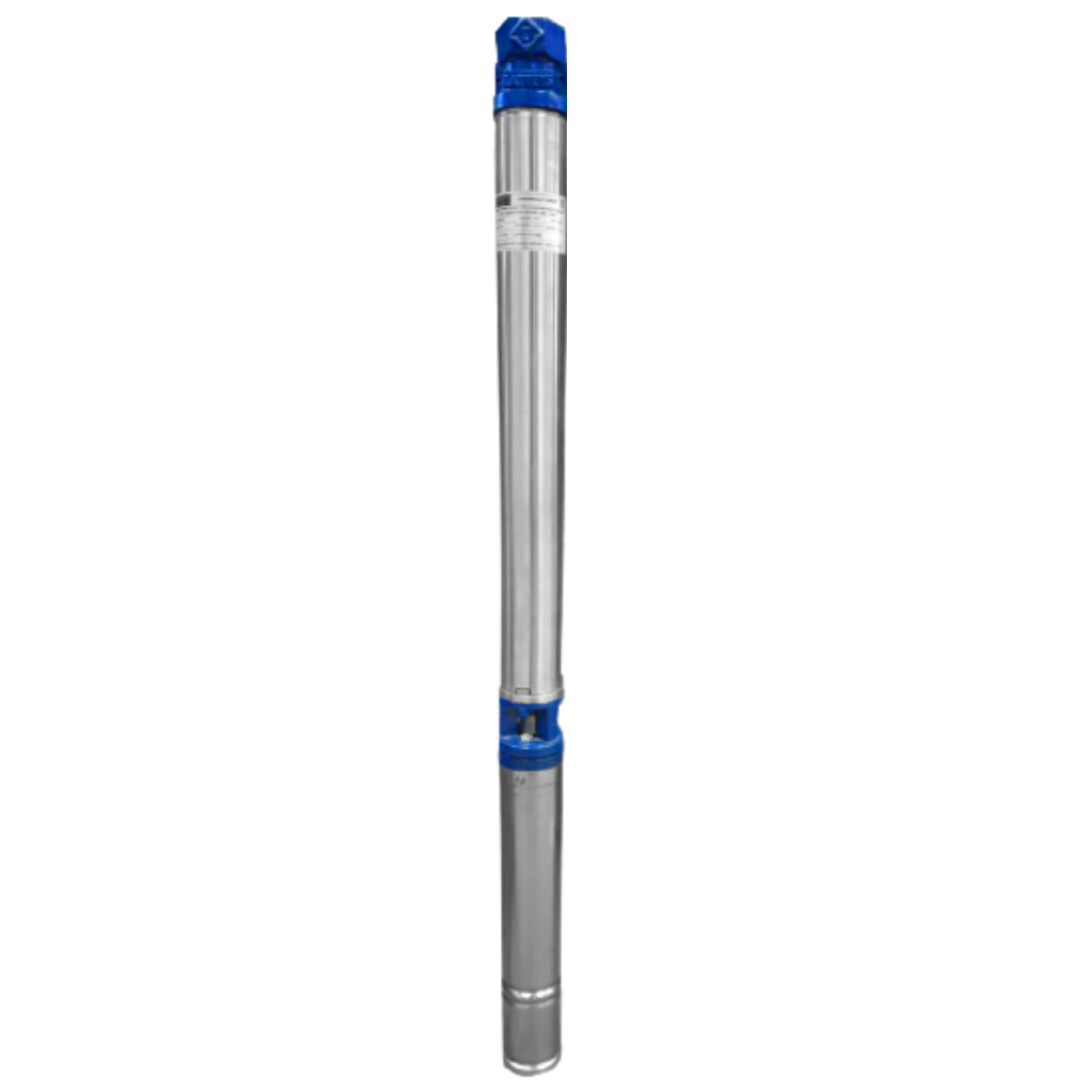

V3 Single Phase Oilfill Submersible Pumpset RadialflowHP Range 0.75-2 Up To Stage 36 Phase Single Phase Suction - -

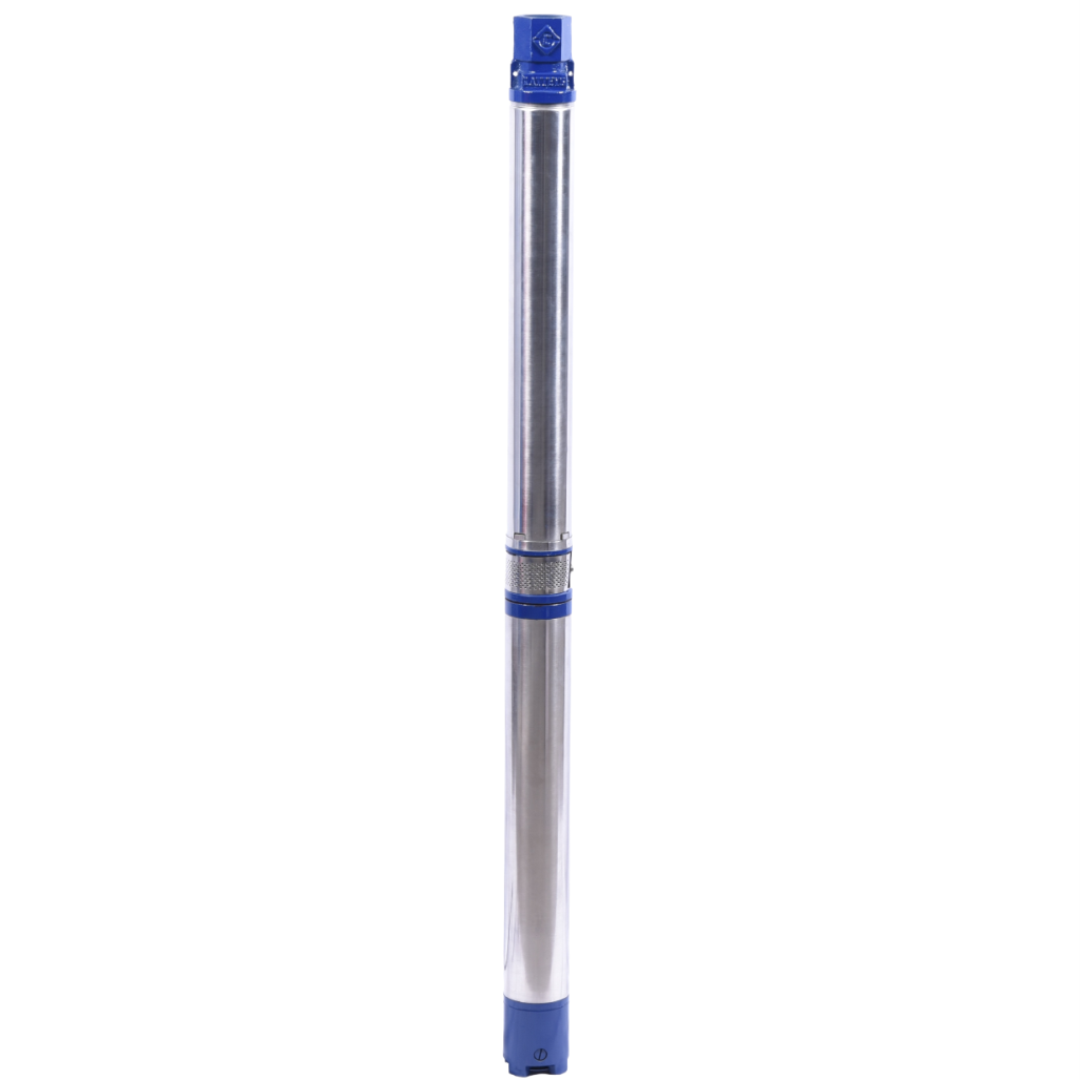

V3 Single Phase Waterfill Submersible Pumpset RadialflowHP Range 0.75-2 Up To Stage 36 Phase Single Phase Suction - -
V4 Energy Efficient PumpsHP Range 0.5-3 Up To Stage 40 Phase - Suction - -
V4 Single Phase/Three Phase Oilfill Submersible Pumpset MixedflowHP Range 1.5-7.5 Up To Stage 18 Phase Single Phase/Three Phase Suction - -
V4 Single Phase/Three Phase Waterfill Submersible Pumpset Mixedflow
HP Range 1.5-7.5 Up To Stage 18 Phase Single Phase/Three Phase Suction - -
V4 Single Phase/Three Phase Waterfill Submersible Pumpset Radialflow
HP Range 0.5-7.5 Up To Stage 60 Phase Single Phase/Three Phase Suction - -

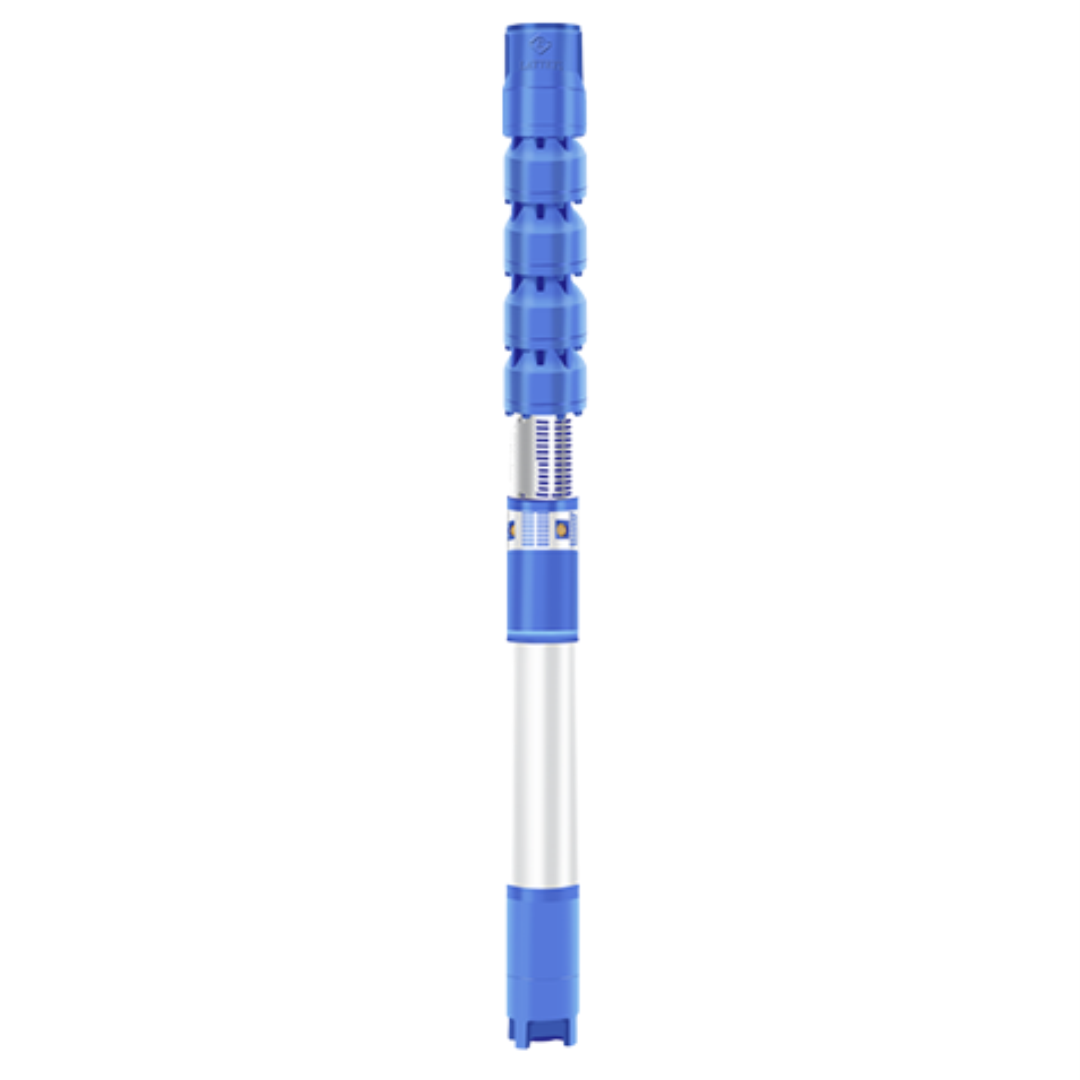

V4-V5 Single Phase/Three Phase Oilfill Submersible Pumpset MixedflowHP Range 3-7.5 Up To Stage 7 Phase Single Phase/Three Phase Suction - -
V4-V5 Single Phase/Three Phase Waterfill Submersible Pumpset MixedflowHP Range 3-7.5 Up To Stage 7 Phase Single/Three Phase Suction - -
V4-V6 Single Phase/Three Phase Oilfill Submersible Pumpset Radialflow
HP Range 1.5-7.5 Up To Stage 25 Phase Single Phase/Three Phase Suction - -
V4-V6 Single Phase/Three Phase Waterfill Submersible Pumpset Radialflow
HP Range 1.5-7.5 Up To Stage 25 Phase Single Phase/Three Phase Suction - -

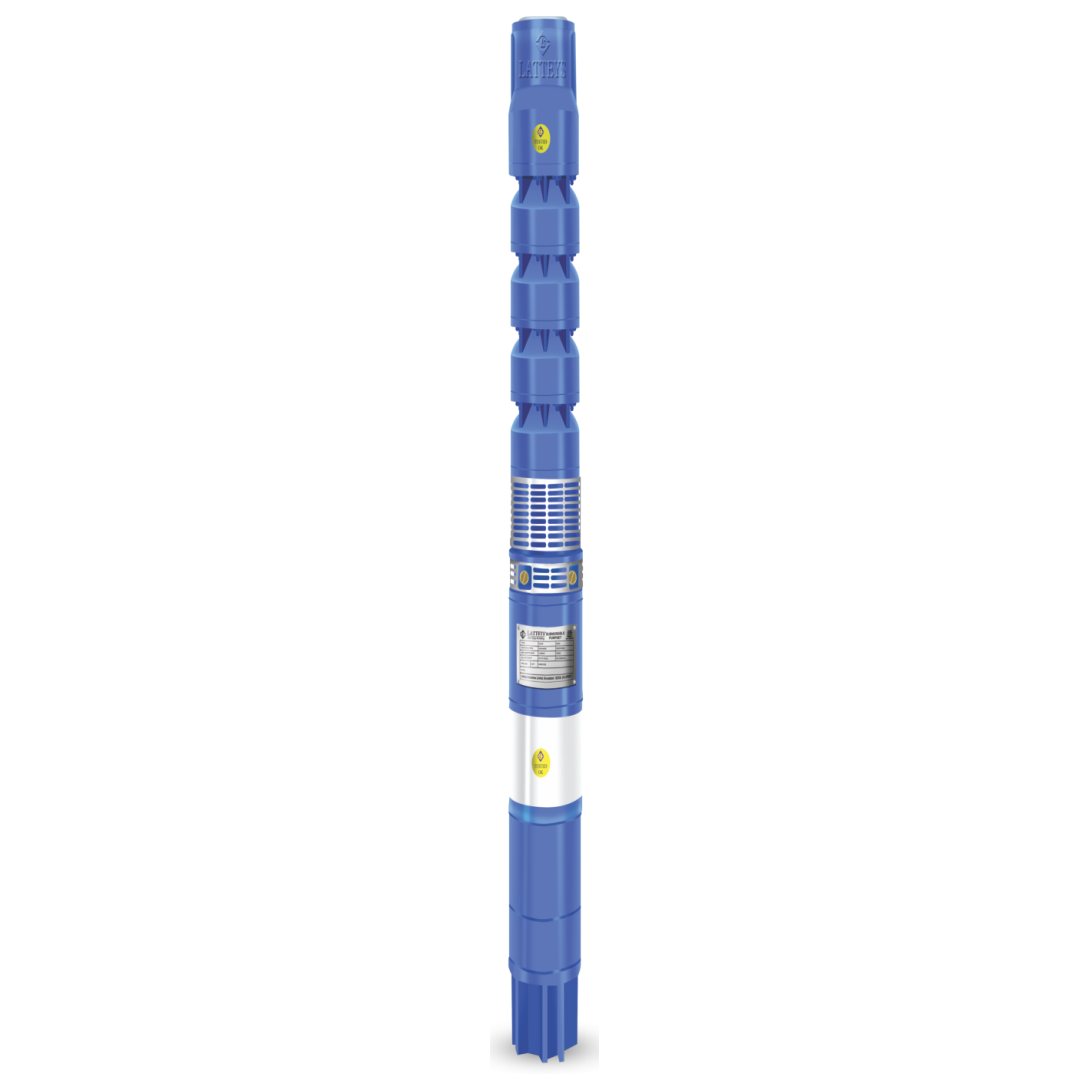

V5 Single Phase/Three Phase Waterfill Submersible Pumpset MixedflowHP Range 3-12.5 Up To Stage 10 Phase Single/Three Phase Suction - -
V5 Single Phase/Three Phase Waterfill Submersible Pumpset RadialflowHP Range 3-12.5 Up To Stage 30 Phase Single/Three Phase Suction - -
V5-V4 Single Phase/Three Phase Waterfill Submersible Pumpset Radialflow
HP Range 3.7.5 Up To Stage 60 Phase Single / Three Phase Suction - -
V5-V6 Single Phase/Three Phase Waterfill Submersible Pumpset RadialflowHP Range 3-10 Up To Stage 30 Phase Single / Three Phase Suction - -
V5-V6 Single Phase/Three Phase Waterfill Submersible Pumpset Mixedflow
HP Range 03-12.5 Up To Stage 10 Phase Single / Three Phase Suction - -
V6 5Star Energy Efficient Submersible PumpsetHP Range 5-20 Up To Stage 40 Phase - Suction - -
V6 Single Phase/Three Phase Waterfill Submersible Pumpset RadialflowHP Range 3-20 Up To Stage 32 Phase Single / Three Phase Suction - -
V6 Single Phase/Three Phase Waterfill Submersible Pumpset Radialflow (50 F.T)
HP Range 3-30 Up To Stage 40 Phase Single / Three Phase Suction - -
V8 Three Phase Waterfill Submersible Pumpset MixedflowHP Range 10-85 Up To Stage 20 Phase Three Phase Suction - -
V9 Three Phase Waterfill Submersible Pumpset MixedflowHP Range 60-125 Up To Stage 16 Phase Three Phase Suction - -
V6 Three Phase Waterfill Stainless Steel Submersible Pumpset RadialflowHP Range 3-20 Up To Stage 31 Phase Three Phase Suction - -
V4 Single Phase/Three Phase Oilfill Stainless Steel Submersible Pumpset RadialflowHP Range 0.50-10 Up To Stage 60 Phase Single Phase/Three Phase Suction - -
V4 Slim Single Phase Waterfill RadialflowHP Range 0.5-1.25 Up To Stage 36 Phase Single Phase Suction - -
V4 Single Phase/Three Phase Oilfill Submersible Pumpset RadialflowHP Range 0.5-7.5 Up To Stage 60 Phase Single Phase/Three Phase Suction - -
V8 Three Phase Waterfill Submersible Pumpset RadialflowHP Range 10-75 Up To Stage 21 Phase Three Phase Suction - -
V6-V8 Three Phase Waterfill Submersible Pumpset MixedflowHP Range 7.5-30 Up To Stage 8 Phase Three Phase Suction - -
V6-V7 Three Phase Waterfill Submersible Pumpset MixedflowHP Range 5.5-30 Up To Stage 12 Phase Three Phase Suction - -
V6 Single Phase/Three Phase Waterfill Submersible Pumpset MixedflowHP Range 3-30 Up To Stage 25 Phase Single / Three Phase Suction -
